$304.61

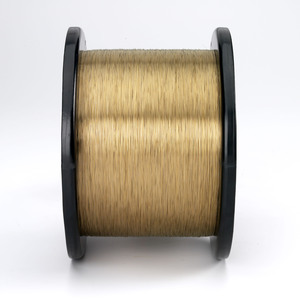

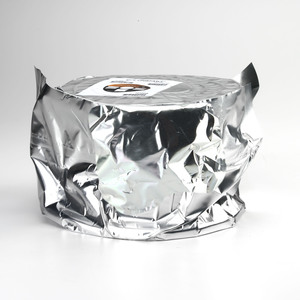

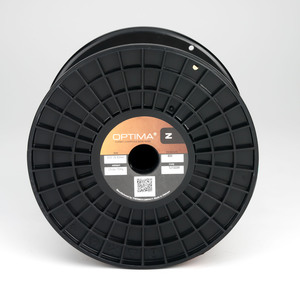

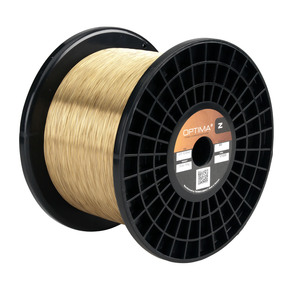

Sign in for member pricingOptima Z .012" 900N/mm2 P10 22.0lb/spool features a CuZn40 (60% copper, 40% zinc) brass core and a special beta gamma coating. It maintains superior surface finish at an excellent price/performance ratio.
We had to adjust your cart quantity for this material because it cannot be backordered. Please reach out to us via Chat if you have any questions.
EDM Wire
| Wire Diameter (in) | .012 |
| Wire Diameter (mm) | 0.3 |
| Elongation | 2 |
| Conductibility | 24.0 |
| Wire Core | Brass 60/40 |
| Wire Coating | Beta & Gamma Brass |
| Tensile Strength (N/mm2) | 900.0 |
| Target Materials | Steel, Aluminum, Copper, Tungsten Carbide, Nickel, Titanium, PCD |
| Flushing Conditions | Average to poor |
| Work-piece size/shape | Medium (<4”) |
| Application Priority (speed vs precision) | Speed & Precision |
| Recommended Usage |
Tool & Die General Machining Medical |
| Spool Type | P10 |
| Spool Weight (lb) | 22 |
| Spool Weight (kg) | 10 |
| Approximate Length/spool (yd) | 17,717 |
| Approximate Length/spool (m) | 16,200 |
| Packaging Quantity | 2/box |
| Machine Manufacturer |
Makino Mitsubishi Fanuc Sodick Seibu |
