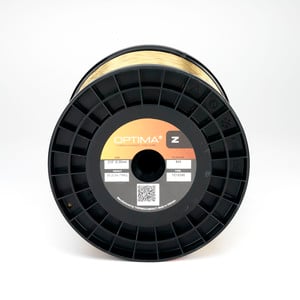

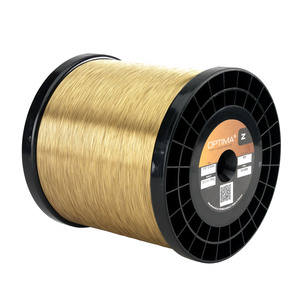

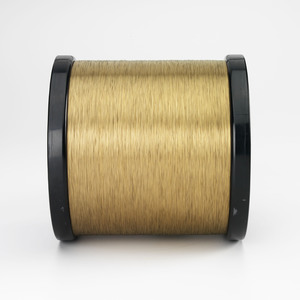

Optima Z .012 900N/mm2 Din200 35.2lb features a CuZn40 (60% copper, 40% zinc) brass core and a special beta gamma coating. It maintains superior surface finish at an excellent price/performance ratio.


EDM Wire
Wire Diameter (in) .012
Wire Diameter (mm) 0.30
Elongation 2
Conductibility 24
Wire Core Brass 60/40
Wire Coating Beta & Gamma Brass
Tensile Strength (N/mm2) 900
Target Materials Steel, Aluminum, Copper, Tungsten Carbide, Nickel, Titanium, PCD
Flushing Conditions Average to poor
Work-piece size/shape Medium tall parts < 6"
Application Priority (speed vs precision) Speed & High Precision
Recommended Usage Tool & Die, General Machining, Medical
Spool Type Din 200
Spool Weight (lb) 35.2
Spool Weight (kg) 16
Approximate Length/spool (yd) 28,871
Approximate Length/spool (m) 26,400

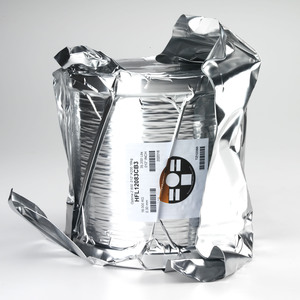

Packaging Quantity 1/box
Machine Manufacturer Makino
