$2,454.14

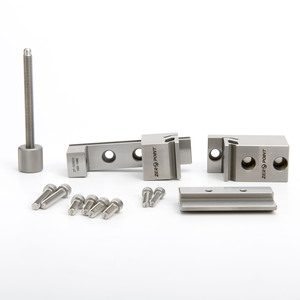

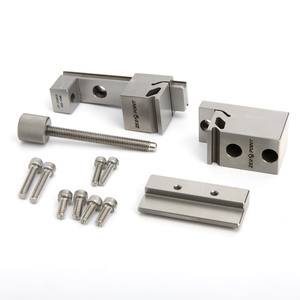

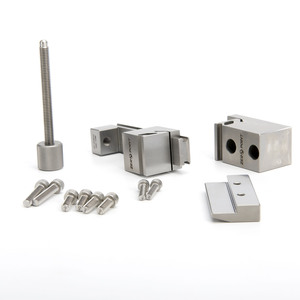

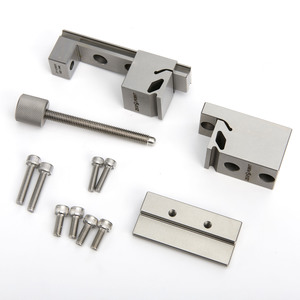

Sign in for member pricingVISE ATTACHMENT FOR BEAM SET is made in South Korea with the highest quality Japanese HPM38 tool steel--resulting in a high quality and cost effective workholding solution.
For availability contact us via Chat, (800)290-7573, or at
[email protected]
Added to Your Shopping Cart
We had to adjust your cart quantity for this material because it cannot be backordered. Please reach out to us via Chat if you have any questions.
Zero Point Tooling is made in South Korea with highest quality HPM38 tool steel made by Hitachi in Japan. It is available for Wire EDM applications only and is the perfect solution for shops that are looking to improve their productivity by adding cost efficient and high quality clamping and workholding devices.
Workholding
| Workholding: Note | Adjustable in the ZX and ZY plane using six screws on the beams . Maximum tightening torque : 8Nm |
| Workholding: Max Load(kg) | 10 |
| Workholding: Features | Horizontal vise to be attached to a Zero Point clamping beam. It features one movable and one fixed jaw and is made of hardened, ground and corrosion-resistant steel. |
| Workholding: Max Load(lbs) | 22 |
| Workholding: Application | Detachable Z-support tabs ensure simple setting-up |
| Workholding: Weight(kg) | 0.7 |
| Workholding: Weight(lbs) | 1.54 |
| Workholding: Assembly | To be fitted to standard or universal beams. |
