$283.62

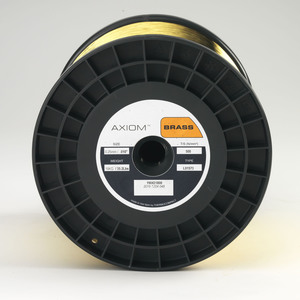

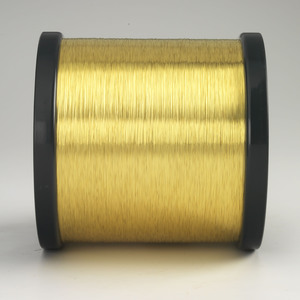

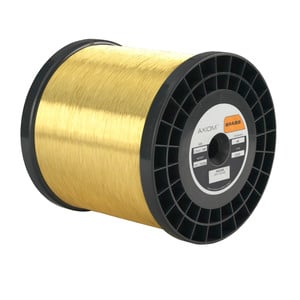

Brass Thermo Axiom Brass 0.010 500 N/mm2 is made under private label by one of the world's leading EDM wire manufacturers. It is a good fit for all types of EDM machines and is well suited for standard applications requiring excellent accuracy and good surface finish. It is made wtih CuZn37 (63% copper, 37% zinc).

Available

Axiom Brass EDM Wire is made under private label by one of the world's leading EDM wire manufacturers. It combines European quality control and production processes with the lower production costs stemming from a dedicated manufacturing location in Vietnam.
Axiom Brass is a good fit for all types of EDM machines and is well suited for standard applications requiring excellent accuracy and good surface finish. It is made wtih CuZn37 (63% copper, 37% zinc). The more commonly used hard version has a tensile strength of 900 N/mm2 and an elongation of 1.5%. The soft version has a tensile strength of 500 N/mm2 with an elongation of 20% which makes it well suited for taper cutting up to a 12° angle.

EDM Wire
Wire Core Brass 63/37
Wire Coating n/a
Elongation 20
Conductibility 25
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Tensile Strength (N/mm2) 500
Target Materials Steel
Flushing Conditions Average
Work-piece size/shape Taper/conical cut > 7°
Application Priority (speed vs precision) Precision and finish
Recommended Usage Aerospace, Precision Machining, Tool & Die, Molds, General Machining, Medical, Production EDM
Spool Type Din 200
Spool Weight (lb) 35.2
Spool Weight (kg) 16
Approximate Length/spool (yd) 41,995
Approximate Length/spool (m) 38,400

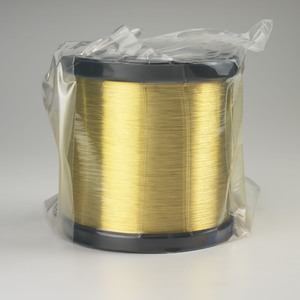

Packaging Quantity 1/box
Machine Manufacturer Agie
Charmilles
GFMS
Makino
Fanuc
Sodick
Mitsubishi
Chmer
