$219.60

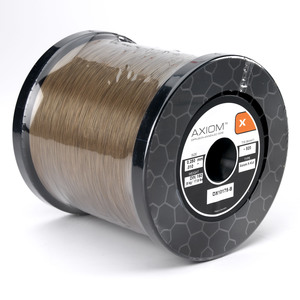

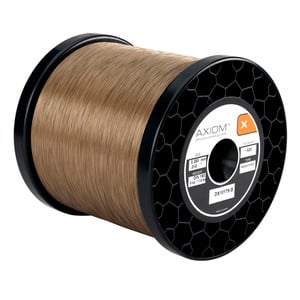

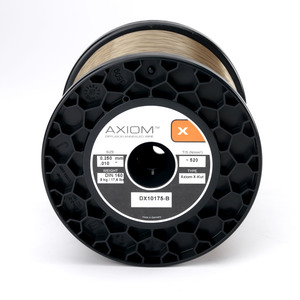

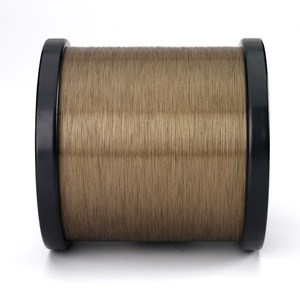

Axiom X-Kut 0.010 520 N/mm2, 17.5 lbs is made under private label for Single Source Technologies by two of the global leaders that manufacture coated EDM wires and is drawn under the same stringent European quality controls as the manufacturers' branded products.

Available

This Axiom X wire is made in Germany under private label for Single Source Technologies by one of the global leaders that manufacture coated EDM wires. This product are drawn under the same stringent European quality controls as the manufacturers' branded products.

Axiom X wire is manufactured to a tensile strength of 520 N/mm2 and comes in .010" and .012" diameter on a variety of spool sizes. It features a pure copper core with a high zinc brass coating (CuZn50). This wire exhibits fast and precise cutting characteristics and is particularly well suited for the use on Charmilles machines with SWX cutting technologies.

EDM Wire
Wire Core Copper
Wire Coating CuZn50
Elongation 1
Conductibility 77.6
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Tensile Strength (N/mm2) 520
Target Materials Steel, Aluminum, Aerospace alloys (Hastaloy, Inconel), PCD, Copper, Graphite, Tungsten Carbide
Flushing Conditions Average to poor
Application Priority (speed vs precision) Speed & Precision
Recommended Usage Aerospace, Precision Machining, Tool & Die, Molds, General Machining
Spool Type DIN 160
Spool Weight (lb) 17.5
Spool Weight (kg) 8
Approximate Length/spool (yd) 20,997
Approximate Length/spool (m) 19,200
Packaging Quantity 2/box
Machine Manufacturer Charmilles
ONA
