$231.51

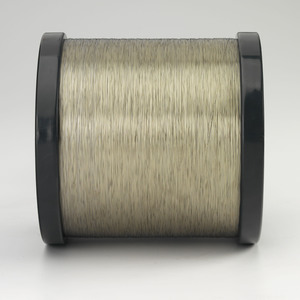

GammaZ 0.010 490 N/mm2 Din 160 17.6lb is a patented, proprietary wire made under private label for Single Source Technologies by Thermocompact in France. It consists of a high zinc brass core which is coated with a proprietary layer of Gamma Phase brass. The Gamma Phase coating is a discontinuous layer of Cu35Zn65 brass which promotes efficient cutting due to its high zinc content, tenacious bond to the core material, and flushing assist provided by the “porous” nature of the discontinuous coating. Cutting speed increases of up to 50% over plain brass wire and 20% over regular Zinc Coated Brass wire have been reported.

Available

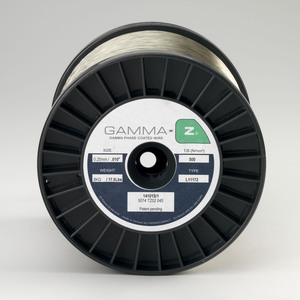

GAMMA-Z High Performance EDM Wire is a patented, proprietary wire made under private label for Single Source Technologies by Thermocompact in Vietnam.

GAMMA-Z High Performance EDM Wire consists of a high zinc brass core which is coated with a proprietary layer of γ-phase brass. The patented proprietary γ-phase coating is a discontinuous layer of Cu35Zn65 brass which promotes efficient cutting due to its high zinc content, strong bond to the core material, and flushing assist provided by the “porous” nature of the discontinuous coating. Cutting speed increases of up to 30% over plain brass wire and 20% over regular Zinc Coated Brass wire have been reported.

GAMMA-Z High Performance EDM Wire provides increased performance levels in most machines and applications at only a moderate increase in cost. GAMMA-Z HIGH PERFORMANCE COATED EDM WIRE actually costs less than many other standard first-generation coated wires. GAMMA-Z High Performance EDM Wire is available in a wide range of diameters, spool sizes, and spool weights.

EDM Wire
Wire Core Brass 63/37
Wire Coating Gamma brass
Elongation 15
Conductibility 23
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Tensile Strength (N/mm2) 450
Target Materials Steel, copper, tungsten carbide, aluminum, nickel, titanium, PCD
Flushing Conditions Average
Work-piece size/shape Taper/conical cut > 7°
Application Priority (speed vs precision) Speed & Precision
Recommended Usage Tool & Die, General Machining, Medical
Spool Type DIN 160
Spool Weight (lb) 17.5
Spool Weight (kg) 8
Approximate Length/spool (yd) 20,997
Approximate Length/spool (m) 19,200
Packaging Quantity 2/box
Machine Manufacturer GFMS AgieCharmilles
Makino
Sodick
Mitsubishi
Fanuc
Ona
