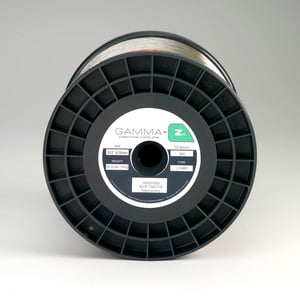

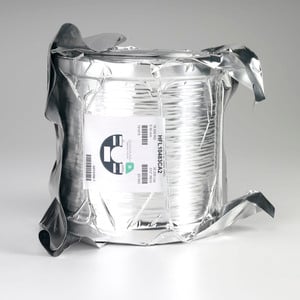

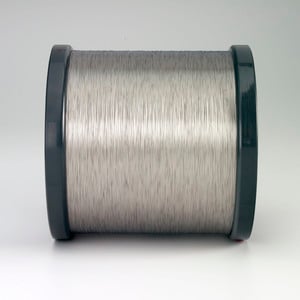

GAMMA-Z High Performance EDM Wire is a patented, proprietary wire made under private label for Single Source Technologies by Thermocompact in Vietnam.
GAMMA-Z High Performance EDM Wire consists of a high zinc brass core which is coated with a proprietary layer of γ-phase brass. The patented proprietary γ-phase coating is a discontinuous layer of Cu35Zn65 brass which promotes efficient cutting due to its high zinc content, strong bond to the core material, and flushing assist provided by the “porous” nature of the discontinuous coating. Cutting speed increases of up to 30% over plain brass wire and 20% over regular Zinc Coated Brass wire have been reported.
GAMMA-Z High Performance EDM Wire provides increased performance levels in most machines and applications at only a moderate increase in cost. GAMMA-Z HIGH PERFORMANCE COATED EDM WIRE actually costs less than many other standard first-generation coated wires. GAMMA-Z High Performance EDM Wire is available in a wide range of diameters, spool sizes, and spool weights.
|Wire Core||Brass 63/37|
|Wire Coating||Gamma brass|
|Wire Diameter (in)||.010|
|Wire Diameter (mm)||0.25|
|Tensile Strength (N/mm2)||900|
|Target Materials||Steel, copper, tungsten carbide, aluminum, nickel, titanium, PCD|
|Application Priority (speed vs precision)||Speed & Precision|
|Recommended Usage||Tool & Die, General Machining, Medical|
|Spool Type||Din 200|
|Spool Weight (lb)||35.2|
|Spool Weight (kg)||16|
|Approximate Length/spool (yd)||41,995|
|Approximate Length/spool (m)||38,400|
