$2,714.73

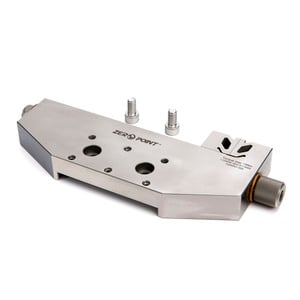

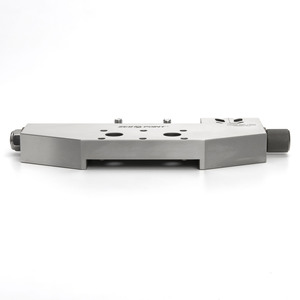

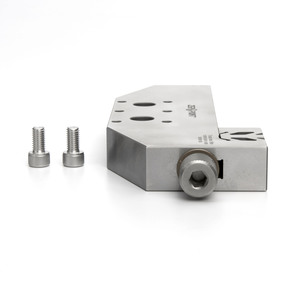

Sign in for member pricingVISE C - 150/25 is made in South Korea with the highest quality Japanese HPM38 tool steel--resulting in a high quality and cost effective workholding solution.
Available
Added to Your Shopping Cart
Zero Point Tooling is made in South Korea with highest quality HPM38 tool steel made by Hitachi in Japan. It is available for Wire EDM applications only and is the perfect solution for shops that are looking to improve their productivity by adding cost efficient and high quality clamping and workholding devices.
Workholding
| Workholding: Note | Used with a fixed base(ZP-024020) the clamping head is adjustable in the ZX and ZY plane with the use of six screws. With the 3D-Leveling Base (ZP-024030) the clamping head is adjustable in the ZX,ZY plane and C-axis using the adjustment screws on the leveling base |
| Workholding: Max Load(kg) | 10 |
| Workholding: Features | Horizontal vise with one movable and one fixed jaw. Ground and corrosion-resistant |
| Workholding: Max Load(lbs) | 22 |
| Workholding: Application | Horizontal clamping of workpieces up to 150mm |
| Workholding: Weight(kg) | 1.9 |
| Workholding: Weight(lbs) | 4.2 |
| Workholding: Assembly | To be fitted to the fix base C(ZP-024020/ZP-024180) or 3D-Leveling base(ZP-024030) |
| Workholding: Range | 0 - 150mm |
