$187.80

D-Type Gamma D 0.010" 790 N/mm2 P5 is a patented, proprietary wire made exclusively for Single Source Technologies. It consists of a Cu80Zn20 brass core which is coated with a proprietary layer of gamma phase brass and promotes efficient cutting due to its high zinc content, tenacious bond to the core material, and flushing assist provided by the “porous” nature of the discontinuous coating. It provides the benefits of highly efficient energy transfer similar to copper combined with the increased tensile strength of brass.

Available

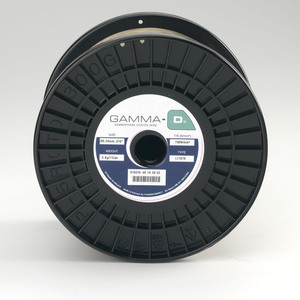

Gamma D High Performance Coated EDM Wire is a patented, proprietary wire made under private label for SST Consumables by Thermocompact in France.

Gamma D High Performance Coated EDM Wire consists of a Cu80Zn20 brass core which is coated with an intermediate layer of β-phase brass and a proprietary outer layer of γ-phase brass. The patented proprietary gamma-phase coating is a discontinuous layer of Cu35Zn65 brass which promotes efficient cutting due to its high zinc content, a strong bond to the core material, and flushing assist provided by the “porous” nature of the discontinuous coating. The Cu80Zn20 brass core provides the benefits of highly efficient energy transfer similar to copper combined with the increased tensile strength of brass.

Gamma D High Performance Coated EDM Wire provides dramatically increased cutting speeds in nickel alloy and aerospace applications with most machine brands when compared with plain brass wire. Substantial cutting speed increases over traditional “D” type wires have been observed. Gamma D High Performance Coated EDM Wire is available in a wide range of diameters, spool sizes, and spool weights.

EDM Wire
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Elongation 2
Conductibility 28.0
Wire Core Brass 80/20
Wire Coating Beta Gamma Brass
Tensile Strength (N/mm2) 750.0
Target Materials Steel, copper, tungsten carbide, aluminum, nickel, titanium, PCD, graphite
Flushing Conditions Average to poor
Work-piece size/shape Tall (>4”)
Application Priority (speed vs precision) Speed & Precision
Recommended Usage Aerospace
Tool & Die
Molds
General Machining
Medical
Spool Type P5
Spool Weight (lb) 11
Spool Weight (kg) 5
Approximate Length/spool (yd) 12,795
Approximate Length/spool (m) 11,700
Packaging Quantity 4/box
Machine Manufacturer GFMS AgieCharmilles
Makino
Sodick
Mitsubishi
Vollmer
Seibu
Fanuc
Ona
